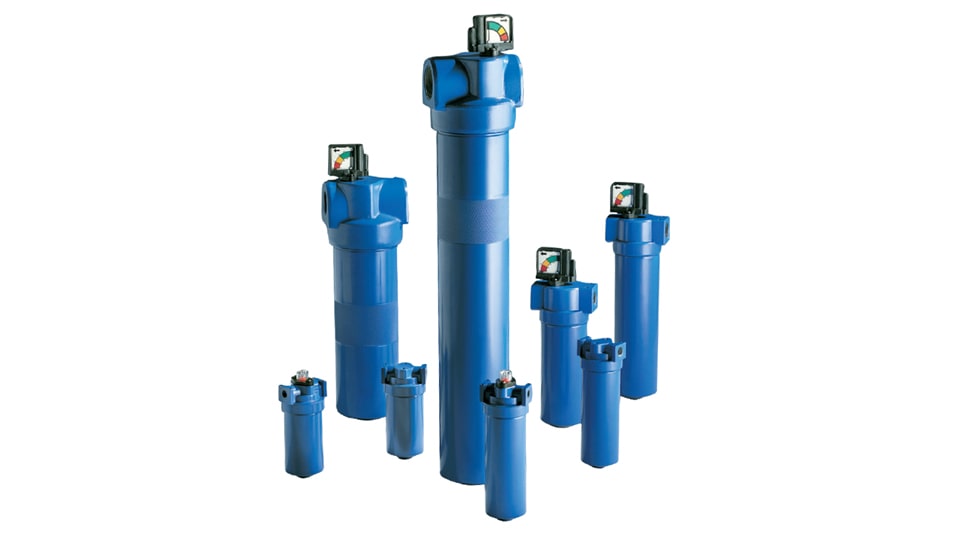

H Series
Our Finite H Series filter eliminates oil, water, and particulate contamination from large flows of compressed air and gas. Extremely versatile, this series offers coalescing, particulate and adsorption filter elements as well as optional indicators, gauges and drains.
- Max Pressure 500 PSIG
- Port Sizes 1.5" to 3"
- Max. Temp: 450°F
- Min. Temp: -20° F
- Certifications CRN
- Threads: NPT
- Material: Aluminum
- Plating: Chromate
J Series
J-Series Filters eliminate rust, pipe scale, compressor lubricant oil, and water from compressed gases. They are ideal in high pressure CNG systems, not only as inter-stage filters in the multi-stage compression of the gas, but also in the storage and delivery of the gas for CNG powered vehicles.
- Max Pressure 5000 PSIG
- Port Sizes: 1/4" to 2"
- Max. Temp.: 350° F
- Min. Temp.: -40° F
- Threads: NPT or SAE
- Material: SG Iron
- Plating: Electroless Nickel
M Series
Varied porting and connection styles, along with a robust design makes the M-Series an extremely versatile filter. It is a perfect fit for interstage filtration applications for multistage, high pressure gas compressors and is compatible with special gases such as argon, hydrogen, CNG and helium.
- Max Pressure: 800 PSIG
- Port Sizes 1/4" to 1", 2"
- Max. Temp. 175°F
- Min. Temp. -20° F
- Threads: NPT
- Material: Aluminum
- Plating: Chromate
ASME Series
Parker’s Finite filters large capacity ASME filter vessels have been designed specifically for our coalescing elements and incorporate large sump capacities and generous exit cavities for maximum performance with low differential pressures.
- Max Pressure: 185 PSIG (Other Pressures Available as Special Order)
- Port Sizes: 3" NPT to 8" Flange
- Max Temp:+450°F
- Min. Temp: -20°F
- Certifications: 3"-6" Flange CRN
- Threads: NPT or Flange
- Material: Carbon Steel
Filters for Compliance with Food Safety Standards
Published guidelines for compressed air in food processing facilities recommend using point-of-use filtersto mitigate contamination risks. Parker's filters act as a robust defense, ensuring consumer safety, cost-efficient production, and compliance with BRC, SQF, and FSSC22000 certifications.
- Acheive an efficieny rating of 5-log reduction, or 99.999% at 0.01 micron
- Aluminum or 304 stainless steel available for different environments
- Port Sizes: 1/4" to 1" NPT
- Continuously trap and drain liquids
Range of Products
The range of Parker Finite's product families provide support for complex systems - choose from available port sizes, port types, and pressure capabilities.
Featured Literature
A Guide to Clean Compressed Air and Gas
A leader in compressed air and gas filtration, Parker Hannifin’s filter products are used across a range of industries.
Hydrogen Filtration for Fuel Dispensing
Ensuring hydrogen purity at refueling stations is crucial for safe and efficient operation.
High Pressure and Alternative Fuel Filtration
High pressure compressors are used in a variety of applications. Many owners, operators and designers of high pressure compressed air or gas systems rely on Finite for high-quality air treatment filters.
Filters for the Natural Gas Industry
The installation of Finite fi lters make it possible to improve process effi ciency and provide optimal process protection.
Learn More About Finite's CNG Capabilities
Compressed Natural Gas, or CNG, is a leading alternative to traditional fuel for the automotive industry. CNG is used in passenger vehicles, pickup trucks, in transit and on school buses. It can be less expensive than gasoline, and is more environmentally friendly, reducing the amount of carbon monoxide, carbon dioxide and hydrocarbon vehicle exhaust emissions.
Featured Literature
A Guide to CNG Filtration
Parker Finite filters can handle the constant feed pressure that the fuel system requires (typically between 200 and 500 PSI). Water separators to remove bulk or condensed water and oil can be installed as a series with different grades of coalescing media.
