Overview
Parker’s full line of hydraulic hose and tubing solutions for the agriculture market offers unmatched weathering, ozone, and abrasion resistance, not to mention the industry’s tightest overall bend radius. Avoid downtime on your mobile agricultural equipment, combines, harvesters, attachments, and sprayers due to lose or failed hoses in need of maintenance and repair. Selling to Original Equipment Manufacturers (OEMs), Agricultural Products Dealers and Retail Farm Stores, Parker’s Hose Products Division is considered a leader in product quality and service. From low-pressure hydraulic hose to spiral wire high-pressure hydraulic hose assemblies, Hose Products Division is ready to service your company needs.
Constant Working Hoses
Constant Working Pressure Hoses are designed to meet the most common working pressures within the agriculture industry. Choosing a constant working pressure hose simplifies the selection process no matter what hose diameter.
187: 1,000 PSI / 7 MPA
Robust and reliable 187 hose expands the unified GlobalCore series of ISO 18752 hoses as the first and only 1,000 PSI constant working pressure hydraulic hose offered in sizes -8 through -48.
387: 3,000 PSI / 21 MPA
Part of Parker’s GlobalCore constant working pressure hose line, lightweight and flexible 387 hoses consistently deliver 3,000 PSI performance across markets and across the globe.
487: 4,000 PSI / 28 MPA
Parker’s 487 GlobalCore hose offers high performance, low-force-to-flex, and constant working pressures of 4,000 psi.
777: 4,000 PSI / 28 MPA
With 4,000 PSI constant working pressure hoses, half SAE bend radius, and four cover options, Parker’s 777 GlobalCore hose delivers maximum performance and efficiency.
Hydraulic Industry Standard Hoses
Hydraulic Industry Standard Hoses are designed to handle extreme circumstances. Parker's Hose Products Division has exactly what you need whether you need higher temperature hose assemblies, increased operating pressures, longer impulse life or maximum abrasion resistance, which is ideal for the agriculture industry.
426 Hose
426 hose has a pressure range of 2,750 to 375 psi, which is designed for engine compartment applications. This hydraulic hose can handle high temperatures, up to 302° F and meets SAE 100R1 specifications.
436 Hose
436 hose is constructed with half the minimum bend radius and a smaller outside diameter (O.D.) to accommodate hydraulic applications with tighter routing requirements. It has a pressure range of 4,000 to 2,000 psi and can withstand up to 302° F.
471TC Twin Tough Hose
471TC Twin Tough hydraulic hose eliminates the labor and material costs required to manually bundle two separate hoses using tie straps or plastic sleeves. The ToughCover provides 80 times more abrasion resistance than standard high pressure rubber hoses, which is ideal for the material handling industry.
Suction and Return Line Hoses
Suction and Return Line Hoses combine to meet a wide range of suction and return applications requirements. Constructed with an oil- and weather-resistant synthetic rubber cover, these high-pressure flexible suction and return line hoses are reinforced with multiple layers of fiber spiral and one helical wire.
811
Parker’s 811 hose is a suction and return line hose that has a working pressure range of 62-300 PSI which is designed for high temperature applications.
811HT
Parker’s 811HT hose is a suction and return line hose that has a working pressure range of 62-300 PSI which is designed for high temperature applications.
881
Parker's 881 hose is a suction and return line hose that has a working pressure range of 62-300 PSI which is designed for high temperature applications.
Push-Lok® Plus Multipurpose Hose
Push-Lok® Plus Multipurpose Hose features the industry's widest fluid compatibility, application range, and size range. Parker's Push-Lok hydraulic hose also incorporates the highest working pressure in all sizes, making it the most versatile general-purpose rubber hose available. Push-Lok assemblies can be made in seconds, saving valuable time and cost, which is vital for the agriculture industry.
801 Series Push-Lok Plus® Multipurpose Hose
Parker's Push-Lok Plus 801 hose is a very flexible all-rounder with Nitrile (NBR) inner tube and a working pressure of up to 2.4 MPa, available in six different colors and compatible with Push-Lok fittings in series 82 in steel, stainless steel and brass.
804 Series Push-Lok EPDM Multipurpose Hose
Parker's 804 Series Push-Lok EPDM Multipurpose Hose is a dry air and hot water hose with a working pressure of 150 PSI, able to accommodate a wide range of fluids, applications and sizes. Offers reliable, durable, leak-free service.
836 Series Push-Lok Plus® Multipurpose Hose
Heat-resistant Push-Lok Plus 836 hoses accommodate higher working pressures and higher temperatures than other Push-Lok Plus hoses while offering the same compatibility features.

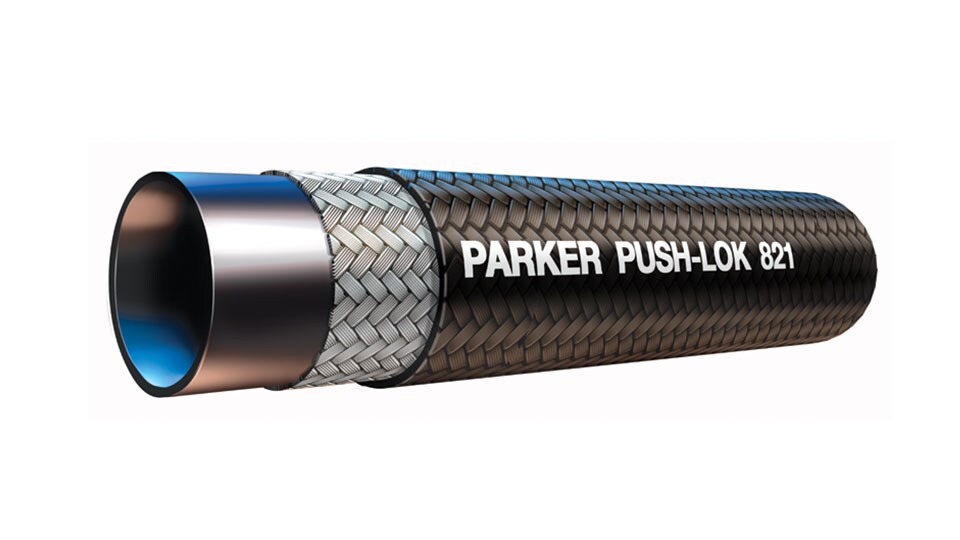

821 Series Push-Lok Plus® Multipurpose Hose
Parker's 821 hose is a higher pressure hose with a pressure range of 250-350 PSI, and is amongst the Push-Lok multipurpose hose line which features the widest fluid compatibility, application range and size range in the industry.

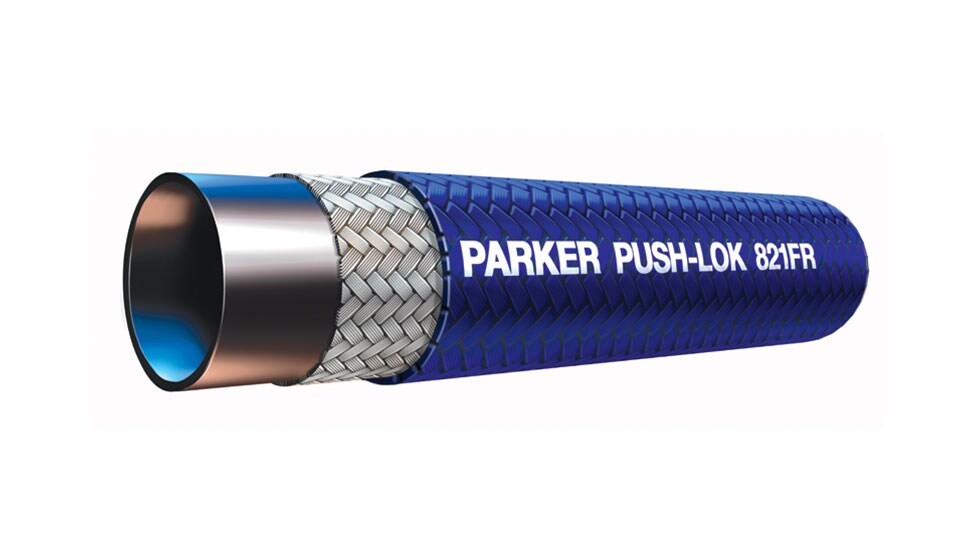

821FR Series Push-Lok Plus® Fire Resitant Hose
Parker's 821FR hose is a fire resistant hose that has a pressure range of 250-350 PSI and offers reliable, durable, leak-free service.
Hydraulic Low Temperature Hose
Hydraulic Low-Temperature Hoses are designed specifically to excel in brutal operating conditions of extreme cold. Parker's low-temperature hoses are rated as low as -70° F, which are ideal for the agriculture industry. These No-Skive hoses use Parker's standard 43, 71 or 79 Series steel and stainless steel fittings and easy-to-use Parkrimp style crimping system.
472LT: Up to 5,800 PSI
Parker’s 472LT hose is a hydraulic low-temperature hose with a pressure range of 2500-5800 PSI in different sizes, designed specifically to excel in the brutal operating conditions of the extreme cold.
722LT: Up to 4,000 PSI
Parker’s 722LT hose is a hydraulic low-temperature spiral hose with a pressure range of 2500-4000 PSI in different sizes, designed specifically to excel in the brutal operating conditions of the extreme cold.
792LT: Up to 6,000 PSI
Parker's 792LT hose is a hydraulic low-temperature hose with a working pressure of 6000 PSI in all sizes, designed specifically to excel in the brutal operating conditions of the extreme cold.
Equipment and Engine Service Hoses
When it comes to farming, weather is in control. With Parker's complete line of industrial hose and tubing, we provide all your weather solutions for the agriculture market offering unmatched weathering, ozone, and abrasion resistance, not to mention the industry's tightest overall bend radius. Parker industrial hose provides improved and smooth working conditions as well as precise control for optimum machinery performance.
Series 7395 E-Z Form™ Coolant Hose
E-Z Form GS Greek Corrugated General Service Suction Hose is a flexible hose designed for transfer of air, coolant, mild chemicals and water in industrial and mobile applications to 257°F and 75 psi.
Series 7219 E-Z Form™ MP Multipurpose Hose
E-Z Form MP Greek Corrugated Multipurpose Oil Resistant Suction Hose is an extremely flexible hose designed for refined fuels and oil transfer in applications to 250°F and 75 psi.
Series 389 SAE Fuel Line Hose (CARB/SORE; EPA)
Parker designed Super-Flex FL-7 Barrier Fuel Line Hose for engine fuel supply in applications to 257°F and 100 psi.
Series 650 Renewable Diesel Fuel Hose
Series 650 Renewable Diesel Fuel Hose can be used in a variety of fuel line applications that transfer gasoline, diesel, or biodiesel from the fuel tank to the engine circuit up to 257°F and 300 psi.
Fuel Service Hoses
Parker designed its Fuel Service Hose for delivery, transfer and transport of oil and refined fuels.

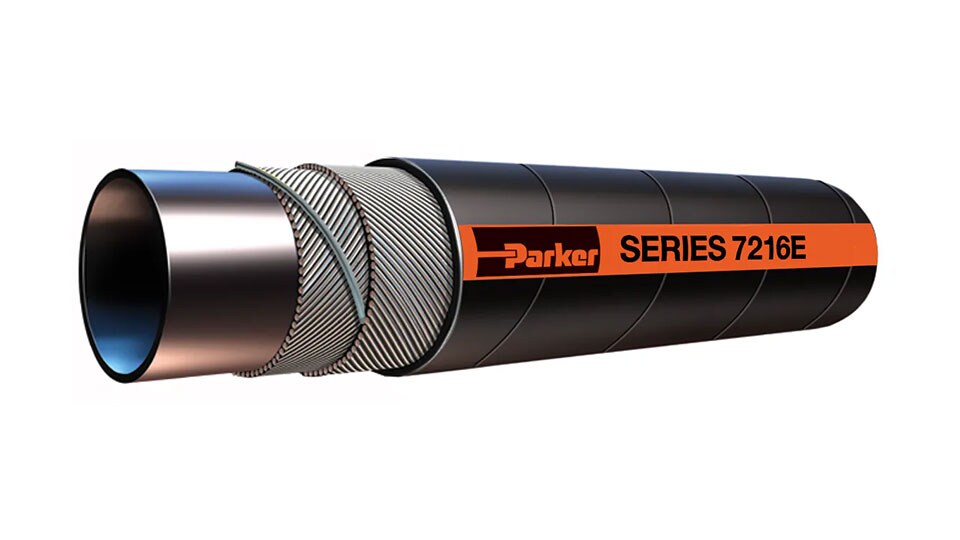

Series 7216E Wildcatter® Petroleum Suction Hose
Wildcatter Oilfield Petroleum Transport Suction Hose is designed for delivery, transfer and transport of oil and refined fuels in applications to 180°F and 150 psi.
General and Multiple Purpose Hoses
General/Multiple Purpose Service Hoses provide safe transfer of air, fertilizer/herbicide, and oil.
Series 7212 Jiffy™ Push-On Hose
Jiffy Push-On/Push Lock Oil Resistant Multipurpose Rubber Hose is designed to transfer air, mild chemicals, oil, water and refined fuels such as biodiesel, diesel, ethanol and gasoline in applications to 212°F and 300 psi.
Series GST® II General Purpose Hose
GST II is a general purpose rubber hose designed for air compressor and shop air hose systems, transfer of mild/diluted chemicals, and water in applications to 212°F and 300 psi.
Series 7094 MPT® II Multipurpose Hose
MPT II Nonconductive Multipurpose Oil Resistant Hose is designed for transfer of air, mild chemicals, oil and water in applications to 212°F and 300 psi.
