Thermal Interface Materials Gels and Pads

Thermal Interface Materials

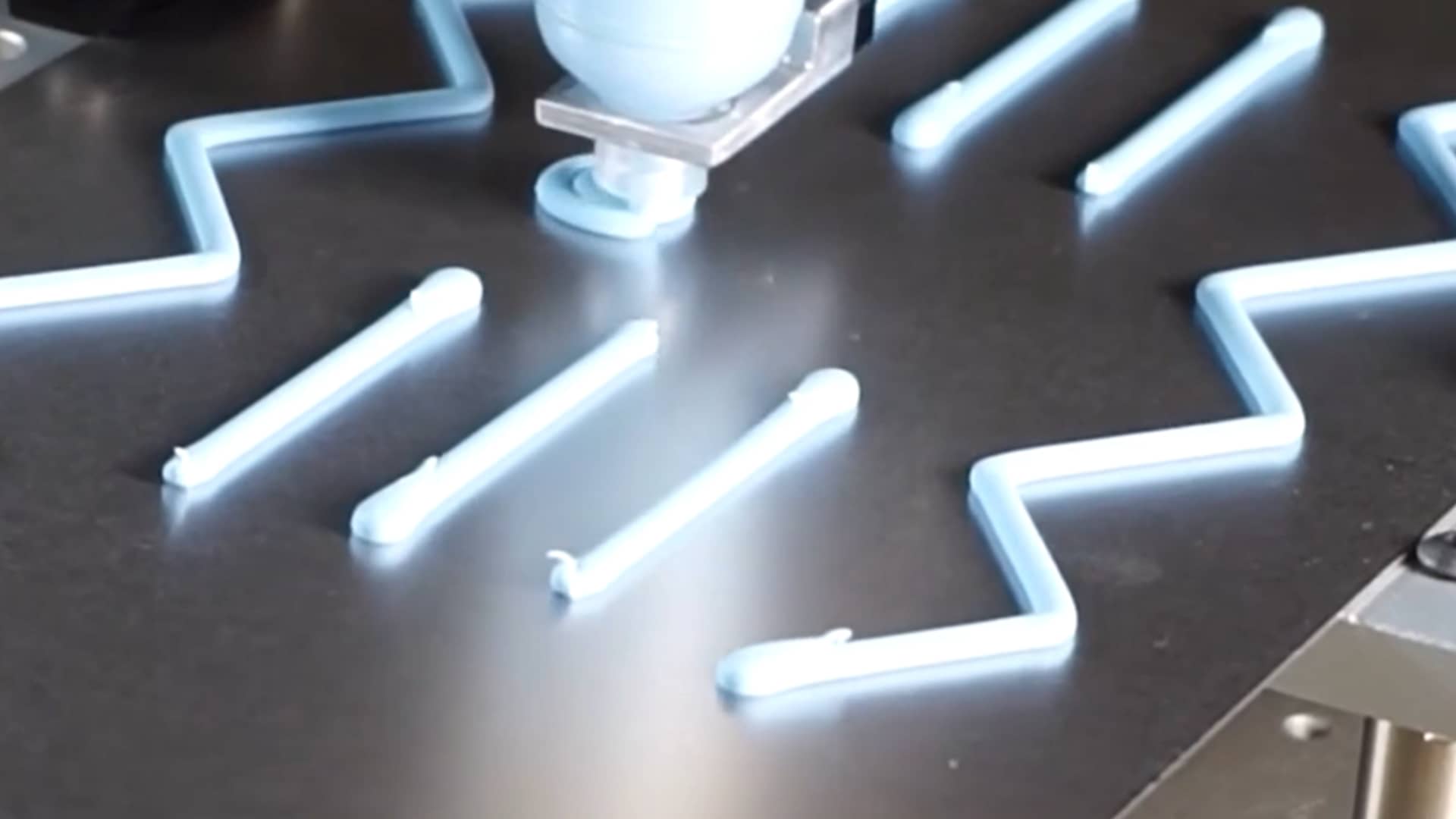

Thermal gels are a type of dispensable thermal interface material formulated to fill gaps and provide excellent heat transfer between heat-generating and heat-dissipating features. Designed as a one-component material that requires no curing processes, gels can be manually or robotically dispensed, provide reliable performance in vertical or large gap applications, and will not harden, become brittle, or crack during their product life.

THERM-A-GAP GEL

“Gels” – the dispensable gap fillers that are highly conformable, pre-cured, single-component compounds – feature a cross-linked gel structure that provides long-term thermal stability and reliability.

THERM-A-GAP™ GEL 40NS is a non-silicone, fully cured, gel with 4.0 W/mK thermal conductivity.

Key features and benefits include:

  • One-component, dispensable
    • Eliminates multiple part numbers
    • Aids in automation
  • Fully cured
    • Requires no refrigeration
    • No mixing or additional curing
    • No settling in storage
  • Long-term reliability
    • Will not harden
    • Will not become brittle or crack
  • Highly conformable at low pressure
    • Applies minimal stress, making it effective for delicate components
  • High surface tack
  • Easily reworkable
  • Designed for a wide range of gaps

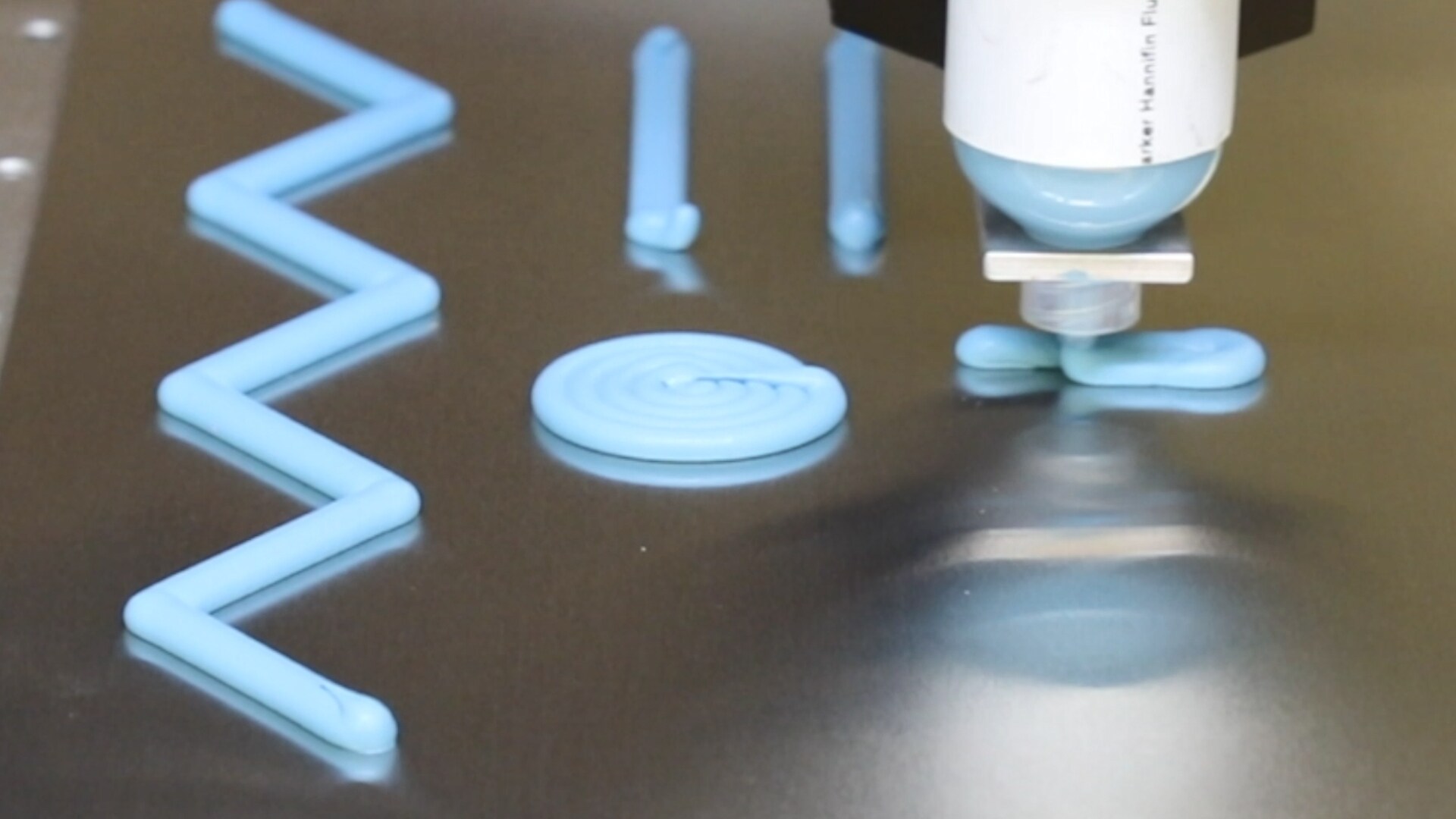

THERM-A-GAP™ GEL 20 is a dispensable gel that has 2.4 W/m-K Thermal Conductivity as a one component fully cured system.

Need Help Finding the Right Gap Filler? Talk to an Expert Engineer Now.

If you need assistance identifying the most suitable gap filler for your application,  speak with one of our expert engineers. Our team is ready to help.

Performance Characteristics

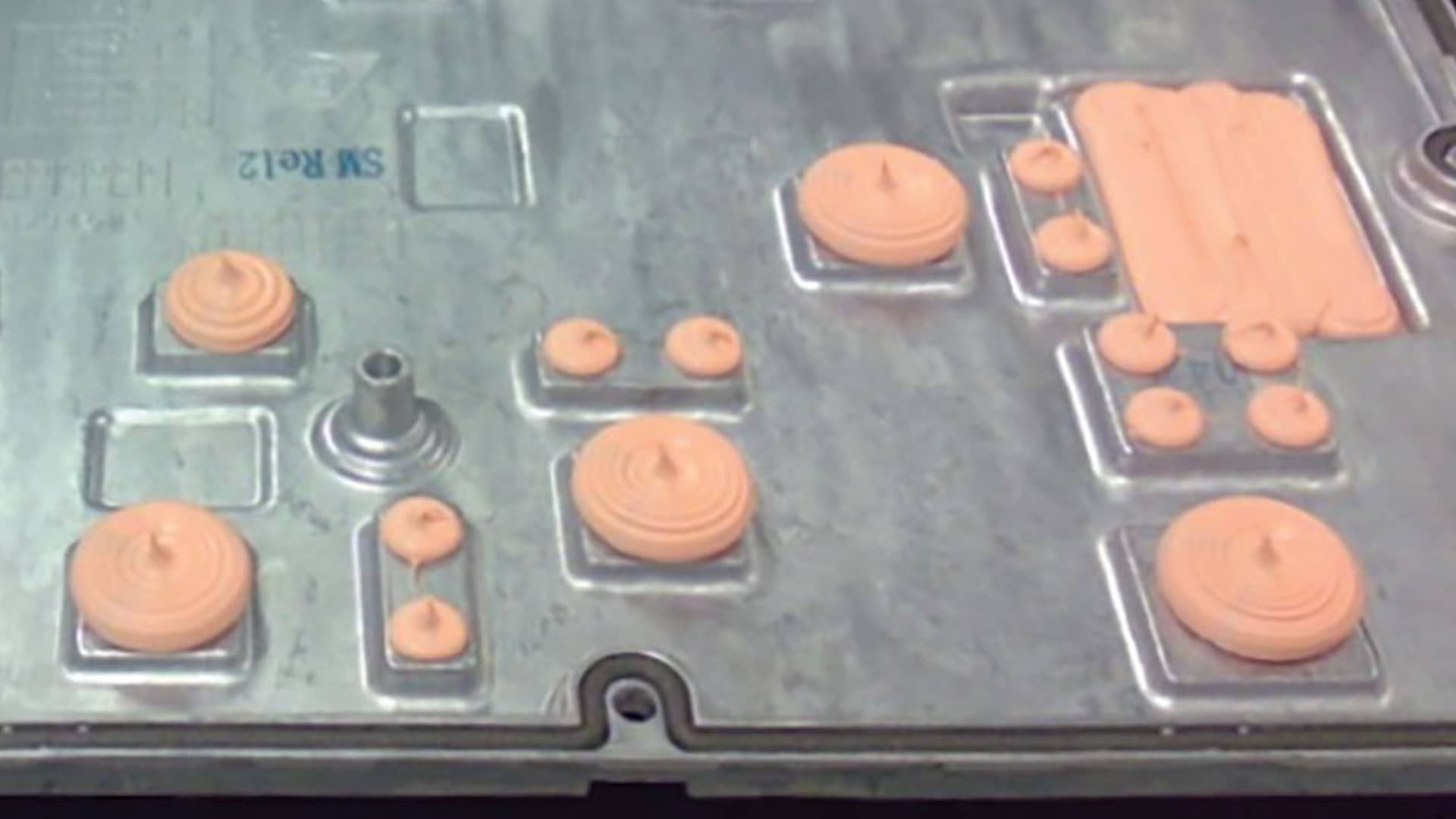

Conformability

Gels are highly conformable and are meant to be deflected between surfaces after being applied. They are electrically insulating and therefore pose no risk of conductive FOD on PCBs.

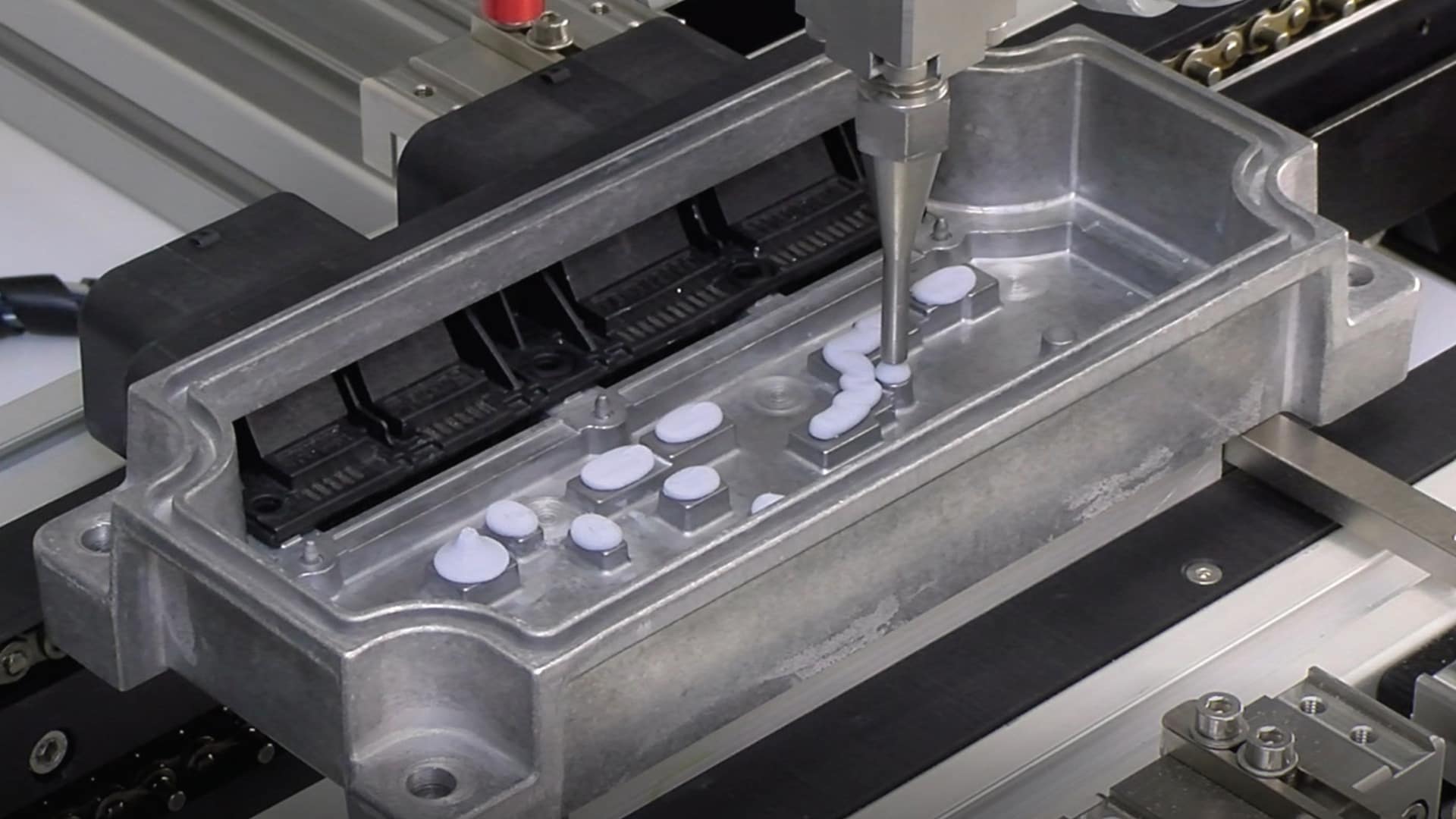

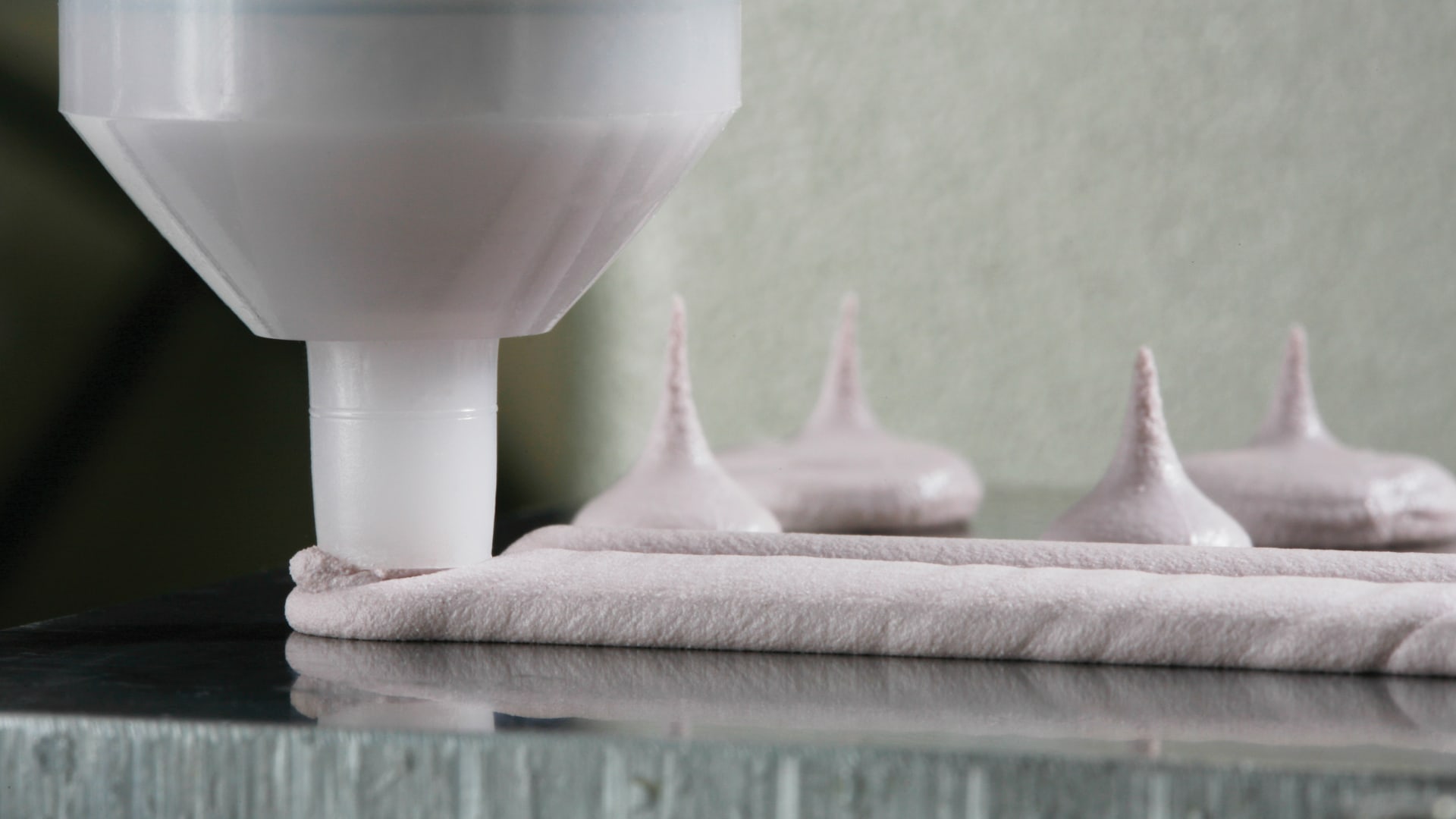

Flow rate

The goal when developing gels is to achieve the highest and most repeatable flow rate. Customers want to be able to set their dispensing equipment for the same flow rate batch-to-batch to maintain a consistent volume of material and avoid waste. Newer gel technologies achieve a more repeatable and higher flow rate that improves throughput and reduces waste.

Parker Image

Thermal conductivity

Thermal conductivity of a material, typically measured in Watt per meter Kelvin (W/m-K) is a bulk material property that represents its ability to transfer heat. A higher thermal conductivity is associated with greater heat dissipation.



The thermal conductivity of gap filler gels ranges from 1 to 10 W/m-K depending on material formualtion and is continuing to increase with new material developments.



NOTE: Thermal impedance is a measure of heat transfer characteristics that takes into account resistance to heat transfer at junctions between materials. Thermal gels, because of their ability to "wet out" and minimize contact resistance, may outperform other types of thermal interface material with equivalent thermal conductivity.

Parker Image

Long-term reliability

Thermal gels have been around for nearly two decades and were developed to perform for long periods of time in critical and high performance applications. Rigorous accelerated aging tests are performed on all materials, especially newly launched products, to help assure long-term reliability.



Parker Chomerics conducts standard, long-term reliability testing that includes testing thermal impedance before and after heat aging, temperature cycling, and combined heat/humidity exposure. Long term heat aging testing consists of 1000 hours of material exposure to 125°C. Temperature cycling involves cycling the material 1000 times from -40°C to 125°C with a 10°C per minute ramp and a 15 minute dwell time at high and low temperatures. Combined heat and humidity testing involved exposing a sample of material to 85°C and 85% relative humidity for 1000 hours.



Vibration testing is also performed based on the GMW3172 automotive test standard. Industry specific testing is available upon request to verify the effective performance of thermal gels in customer-specific applications.

Parker Image

Fully Cured

Curing refers to the irreversible chemical reaction that joins or cross-links polymer chains within a material, in this case a thermal interface material. Thermal gels are fully cured when supplied and require no secondary cure when dispensed or applied into an application. This is different from other types of thermal interface material that require the material to undergo a cure process, typically several hours or days at room temperature or a shorter period of time when exposed to higher temperatures. This gives gels the added benefit of not delaying, or adding complexity to, the manufacturing process. Simply dispense the gel, apply the mating surfaces together, and the material will immediate provide heat transfer characteristics.



Curing contributes to the viscoelastic properties of gels which improves form stability over a non-cured system. Additionally, fully cured and cross-linked materials are resistant to breakdown from solvents and harsh chemicals.

Parker Image

THERM-A-GAP GEL Suffixes

  • HF - High Flow, indicating that the material is ideal for high volume dispensing applications and high throughput production operations.
  • NS - Non-Silicone, ideal for applications where silicone contamination is an issue, such as optical systems or where silicone use is restricted
  • TBL - Thin Bond Line, indicating that this material is meant for thin bond line applications
  • VT - Vertical Tackiness, indicating that this material is meant to perform reliably in vertical and/or high vibration applications

Should I Use a Gap Filler Pad or Gel?

Deciding between the thermal interface material types of gap filler pads, also called thermal gap fillers, and dispensable compounds such as thermal putties and thermal gels can be challenging. Our experts break it down so you can understand which type of thermal interface material is best for your application.

Deciding between the thermal interface material types of gap filler pads, also called thermal gap fillers, and dispensable compounds such as thermal putties and thermal gels can be challenging.Our experts break it down so you can understand which type of thermal interface material is best for your application. You won't be confused as to which thermal interface material to select after watching this!Follow Parker Chomerics: Twitter: https://twitter.com/parkerchomericsLinkedIn: https://www.linkedin.com/company/parker-chomericsSubscribe: http://solutions.parker.com/chomerics-newsletter-sign-up

Need a THERM-A-GAP PAD Instead of a GEL?

If you need assistance identifying the most suitable gap filler for your application,  speak with one of our expert engineers. Our team is ready to help.

Thermal Interface Materials

We offer an extensive range of thermal interface materials, including thermally conductive adhesive tapes, thermally conductive greases, thermally conductive heat spreaders, and thermally conductive phase change materials. We invite you to explore our selection and determine which materials are best suited for your specific application. Our products are designed with reliability and quality in mind, and our commitment to customer satisfaction is paramount.

Webinar: Selecting a Thermal Gel or Thermal Gap Pad

Discover how to select a thermal gel or thermal pad with this on demand webinar. This on-demand webinar is all about thermally conductive dispensable gels and thermal gap filler pads, focusing on:

  • How to determine which thermal interface material is right for you
  • The benefits of each - a dispensable gel or gap pad and what you need to know about them
  • Determining your requirements and selecting a material that best suits your application
